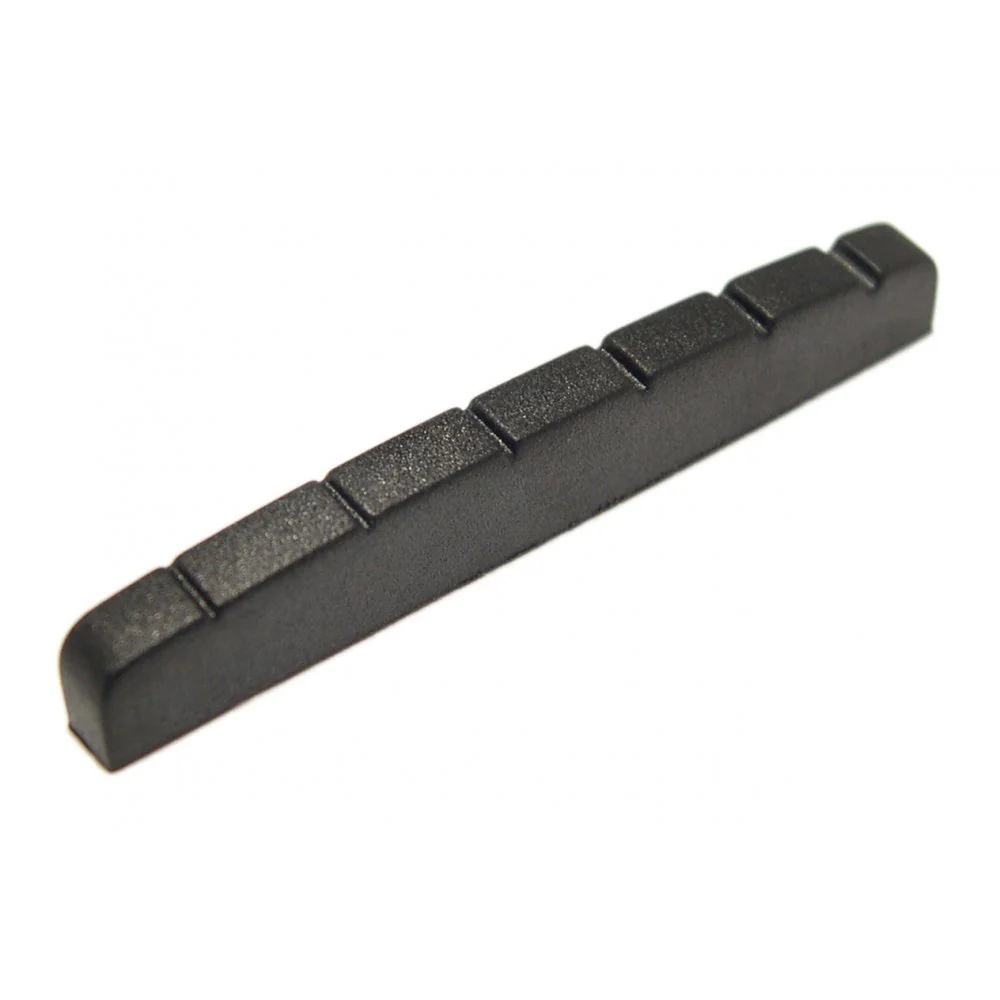

Trem Nut Strat Slotted, Flat bottom Black TUSQ XL
Graph Tech Nut. Same as our PT-5000-00, but with a flat bottom for import Strat guitars. The string slots are pre-cut to a 9.5" radius. Graph Tech recommend filing the middle string slots a tiny bit deeper to accommodate necks that have a flatter fingerboard radius, such as 12". We recommend taking the nut and neck to a qualified guitar luthier who can carry this work out for you if you are unsure about modifying the nut.
Graph Tech String Saver Nut. Black finish. As the string moves against the String Saver material, a thin Teflon film is created. This drastically reduces friction meaning strings will glide back into tune.
| Measures | Length | Width | Height | E to E |
| Inches | 1.764 | 0.130 | 0.255 | 1.362 |
| Approx In | 1 3/4 | 1/8 | 1/4 | 1 3/8 |
| Millimeters |
44.81
|
3.30
|
6.48
|
34.59 |
Description
Graph Tech Nut. Same as our PT-5000-00, but with a flat bottom for import Strat guitars. The string slots are pre-cut to a 9.5" radius. Graph Tech recommend filing the middle string slots a tiny bit deeper to accommodate necks that have a flatter fingerboard radius, such as 12". We recommend taking the nut and neck to a qualified guitar luthier who can carry this work out for you if you are unsure about modifying the nut.
Graph Tech String Saver Nut. Black finish. As the string moves against the String Saver material, a thin Teflon film is created. This drastically reduces friction meaning strings will glide back into tune.
| Measures | Length | Width | Height | E to E |
| Inches | 1.764 | 0.130 | 0.255 | 1.362 |
| Approx In | 1 3/4 | 1/8 | 1/4 | 1 3/8 |
| Millimeters |
44.81
|
3.30
|
6.48
|
34.59 |
