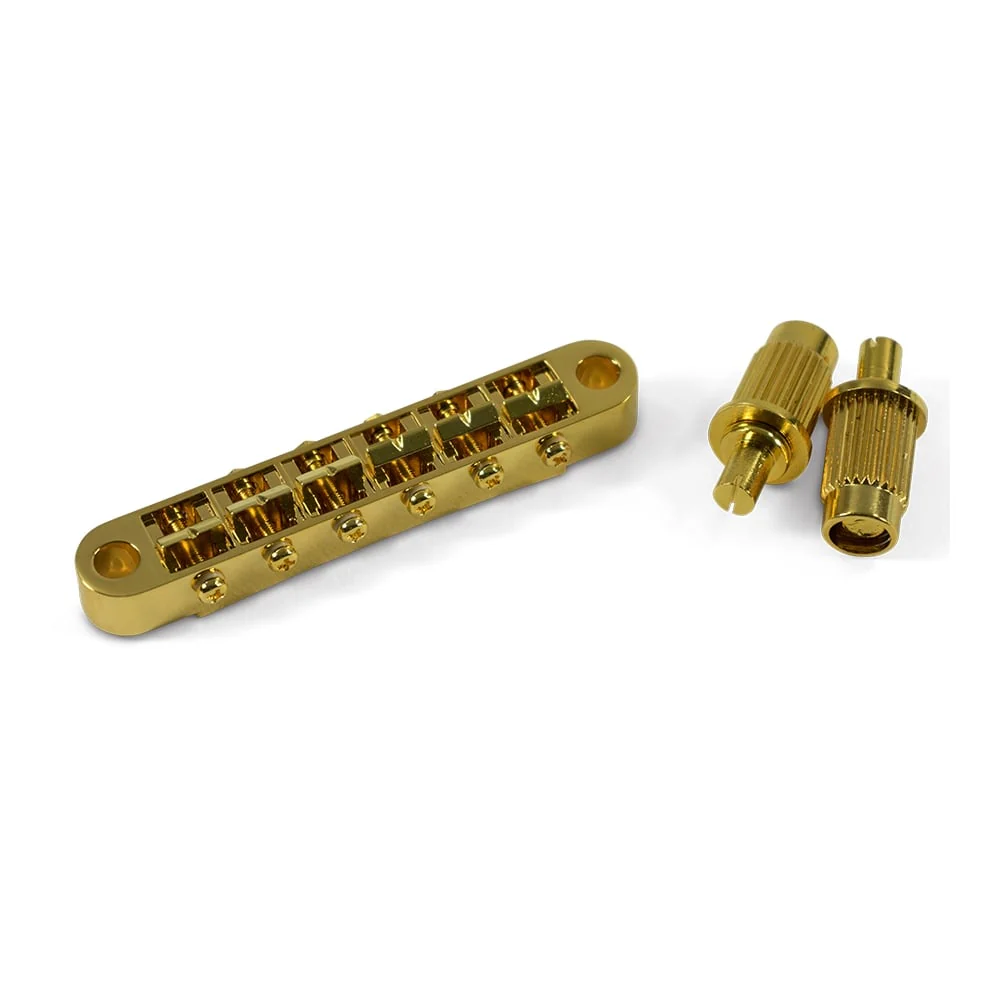

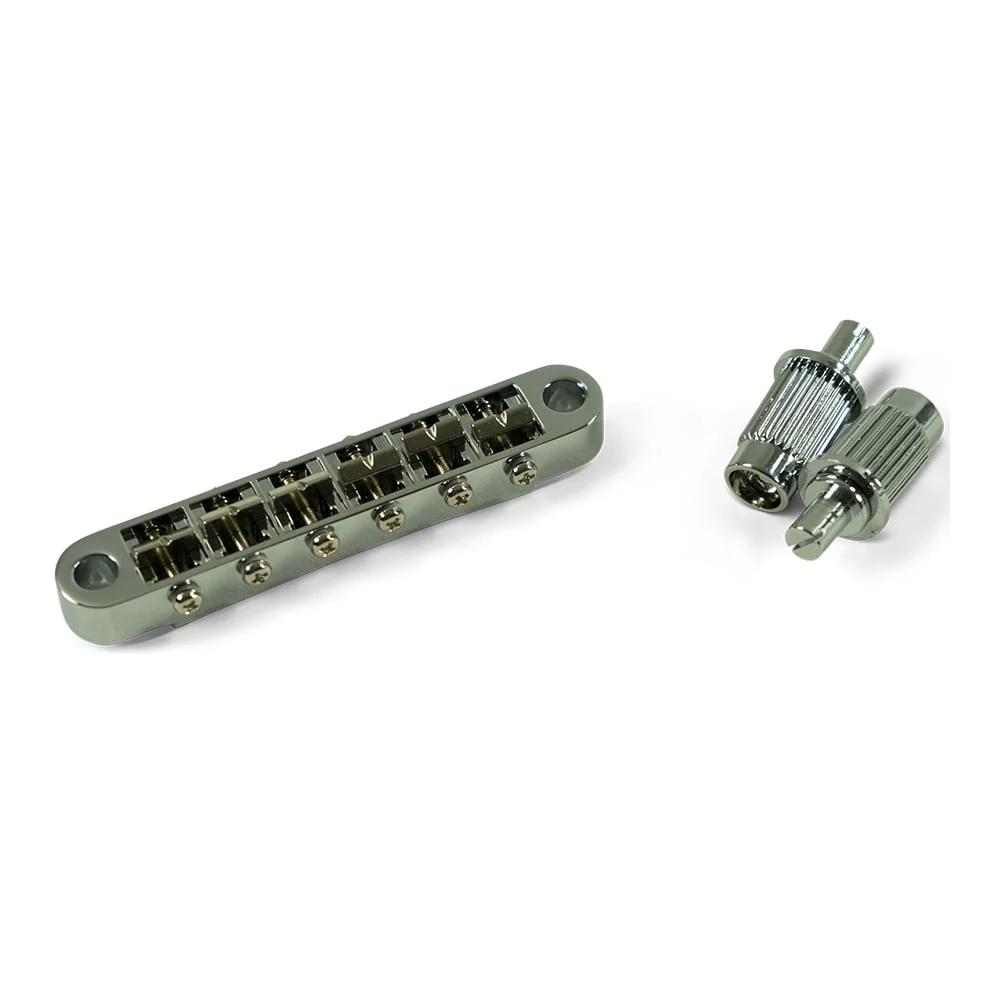

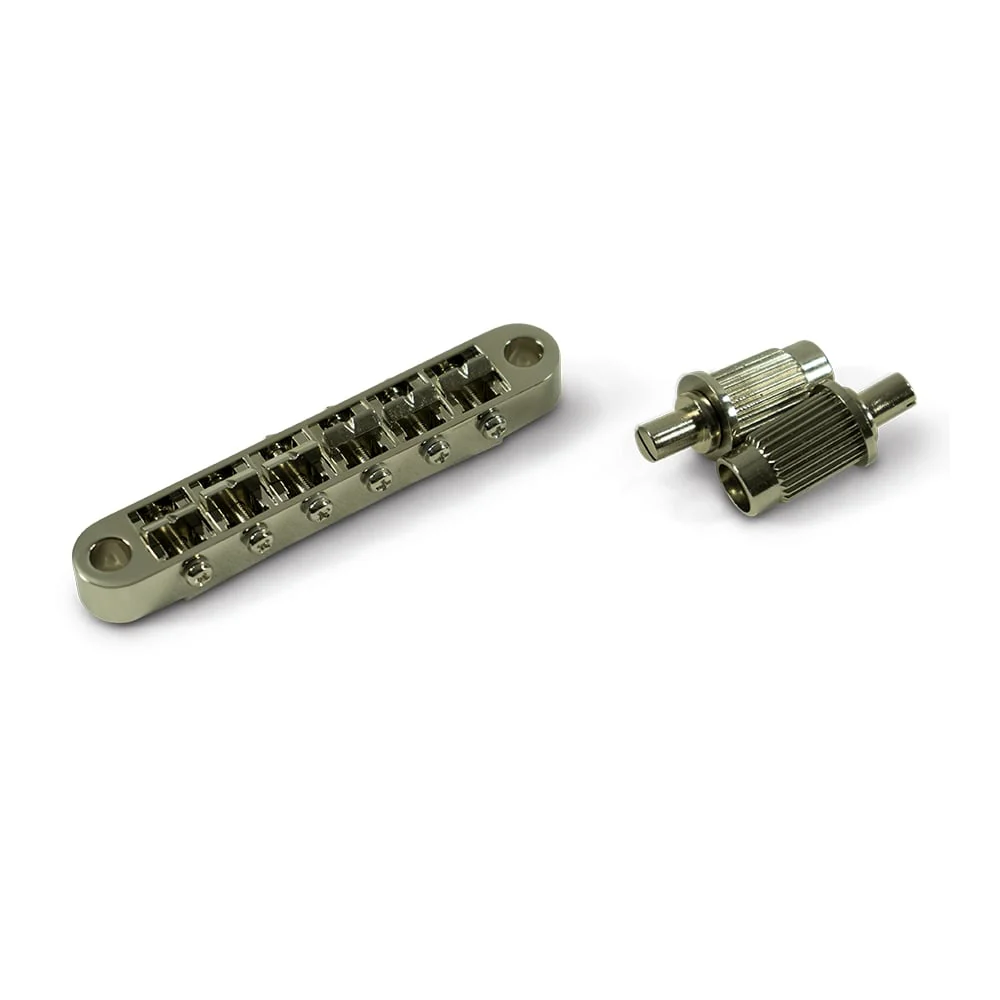

Nashville Bridge with studs and inserts (73.5mm Post Spacing)

A Nashville-style tune-o-matic bridge, often found on early 2000s Japan Jackson DXMGT Dinky Hard Tail guitars. This bridge features a slightly narrower mounting post spacing compared to many standard Nashville bridges. It includes studs and inserts. The underside of the unit is stamped with BH-1993.

73.5mm post to post center to center spacing

E to E spacing= 52mm

Bridge material= Zinc alloy

Stud top diameter= 6mm

Stud thread type= Metric M8 - 1.25

Bushing O.D.= 12mm

Bushing Depth= 25/32 in. (19.8mm)

Saddles= Zinc alloy
