Enclosed 4 In Line Bass Tuners Chrome

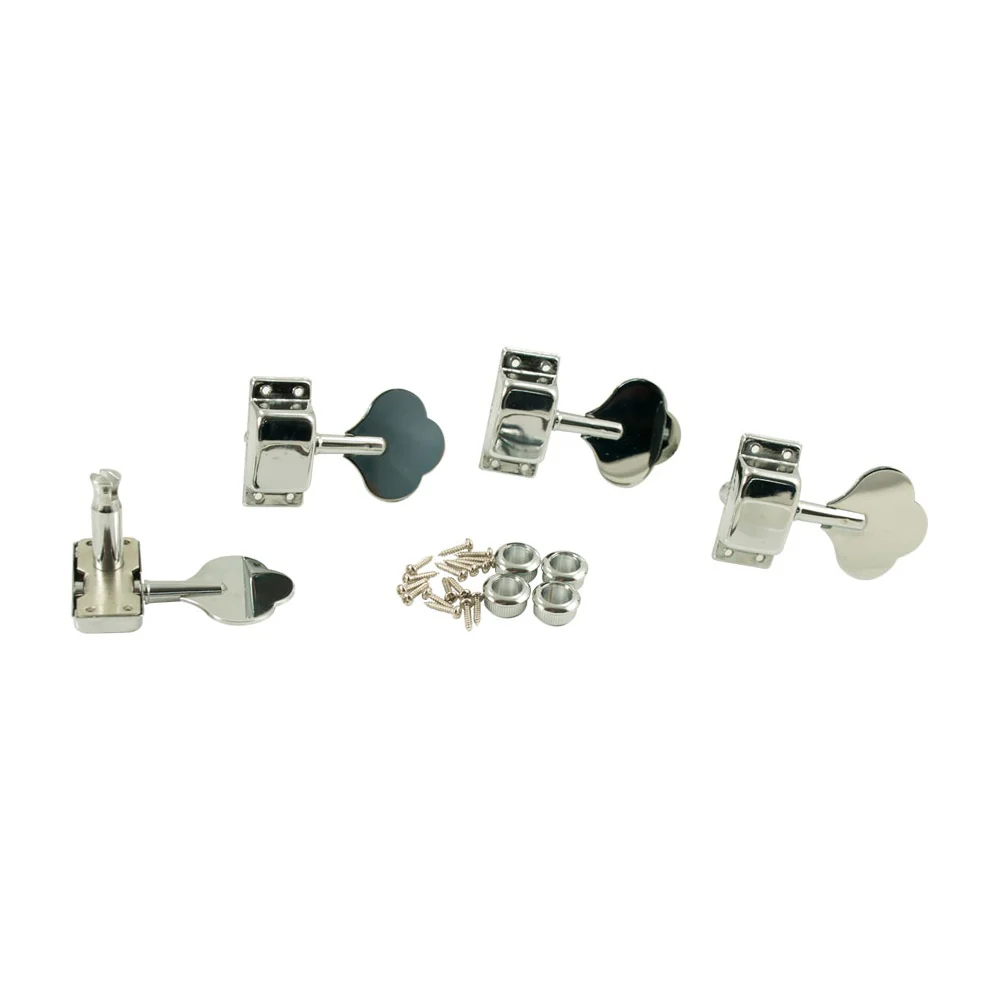

Screws and bushes included. This closed-back set of 4 tuners utilizes 4 mounting screws and has a stamped steel dust cover over the gears to protect them from dirt and the elements. This set includes 4 bass side tuners for a typical 4-in-line installation.

String Post width = 21/64 in. (8.8mm)

String Post length = 1 1/8 in. (28.5mm)

Bushing peg hole requirement = 1/2 in. (12.5mm)

Bushing I.D. = 11/32 in. (8.7mm)

Bushing Lip Diameter = 35/64 in. (14mm)

Dust Cover Dimensions = 1 19/32 in. X 3/4 in.

Mount Screws = 13/32 in. (10.31mm) apart side to side

1 9/32 in. (32.54mm) apart top to bottom

Dust cover height = 1/2 in. over worm gear tapering to 23/64 in. at bottom of cover

There is a 1/4 in. flange on either end to accommodate mounting screws

Gear ratio = 14:1

Distance between edge of casing to the start of cloverleaf tuning head - 12mm
